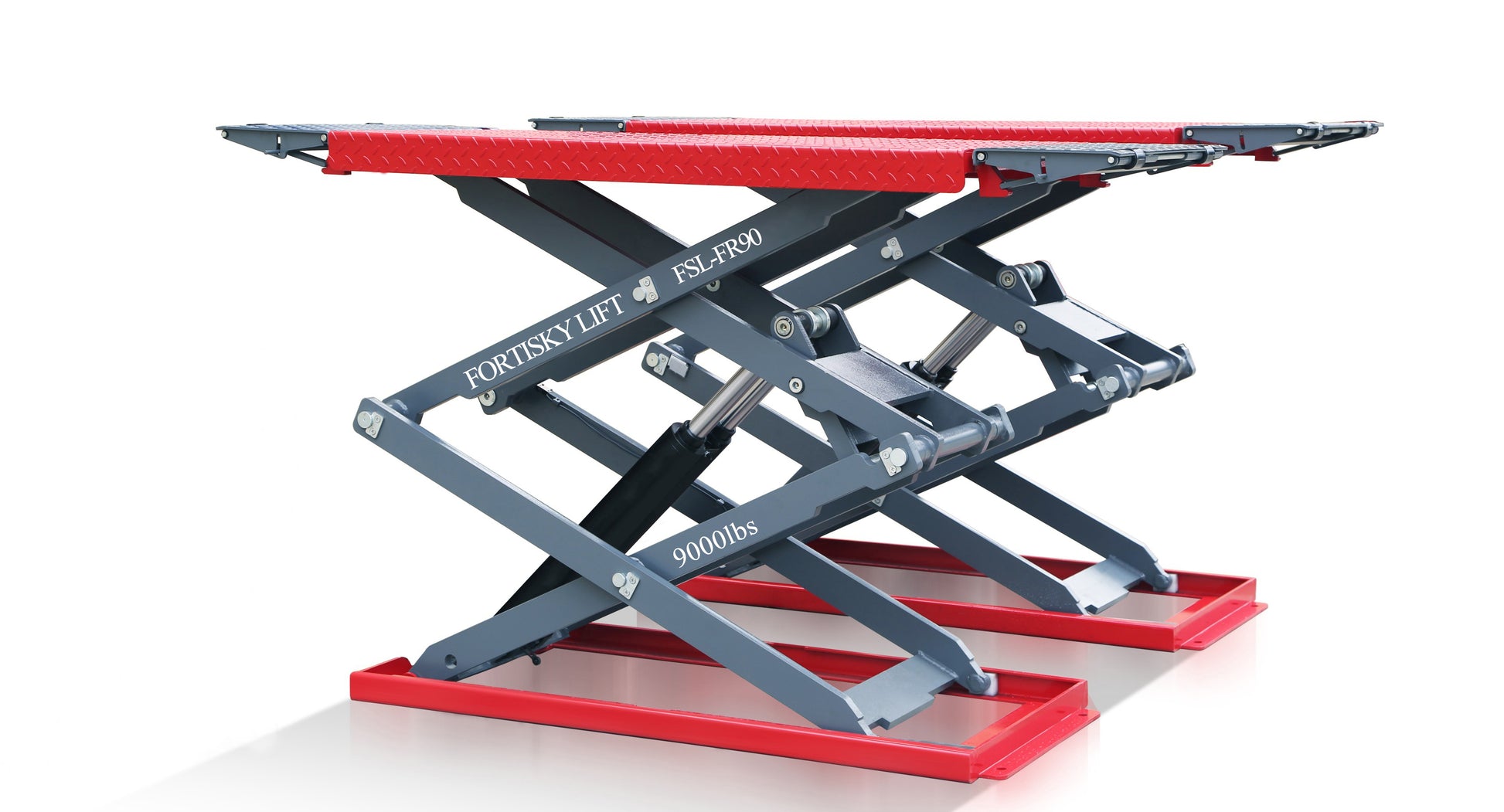

Fortisky Full-Rise Scissor Lift 9000lbs 72" Electric Lock Release 220v FSL-FR90

Fortisky Full-Rise Scissor Lift 9000lbs 72" Electric Lock Release 220v FSL-FR90

$5,695.00 USD
$5,999.00 USD $5,695.00 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

  • All items are shipped by freight shipping ONLY within the lower 48 states.
  • Free Shipping to a commercial address or the nearest carrier terminal.
  • Residential Delivery, Farmland, Construction Site, and Lift Gate Service will be charged extra by the shipping carrier.
  • THE BUYER IS ALWAYS RESPONSIBLE FOR UNLOADING THE PRODUCT FROM THE TRUCK.
  • A forklift or something similar is required from the customer for unloading the product.
  • Loading Dock or Lift Gate may be required.
  • The buyer is also responsible for any re-delivery charges and storage charges.
  • Buyers should inspect all items upon delivery for any concealed and non-concealed damages that may have occurred during transit, any damages or shortages
  • MUST be noted on the Bill of Lading or Delivery Receipt at the time of delivery.
  • Buyer satisfaction is assumed if no damages are noted on the delivery receipt.
  • For more information, please see our Shipping Policy .

View full details

Description

Features: FSL-FR90

  • 9000LBS. lifting capacity

  • Four cylinder design

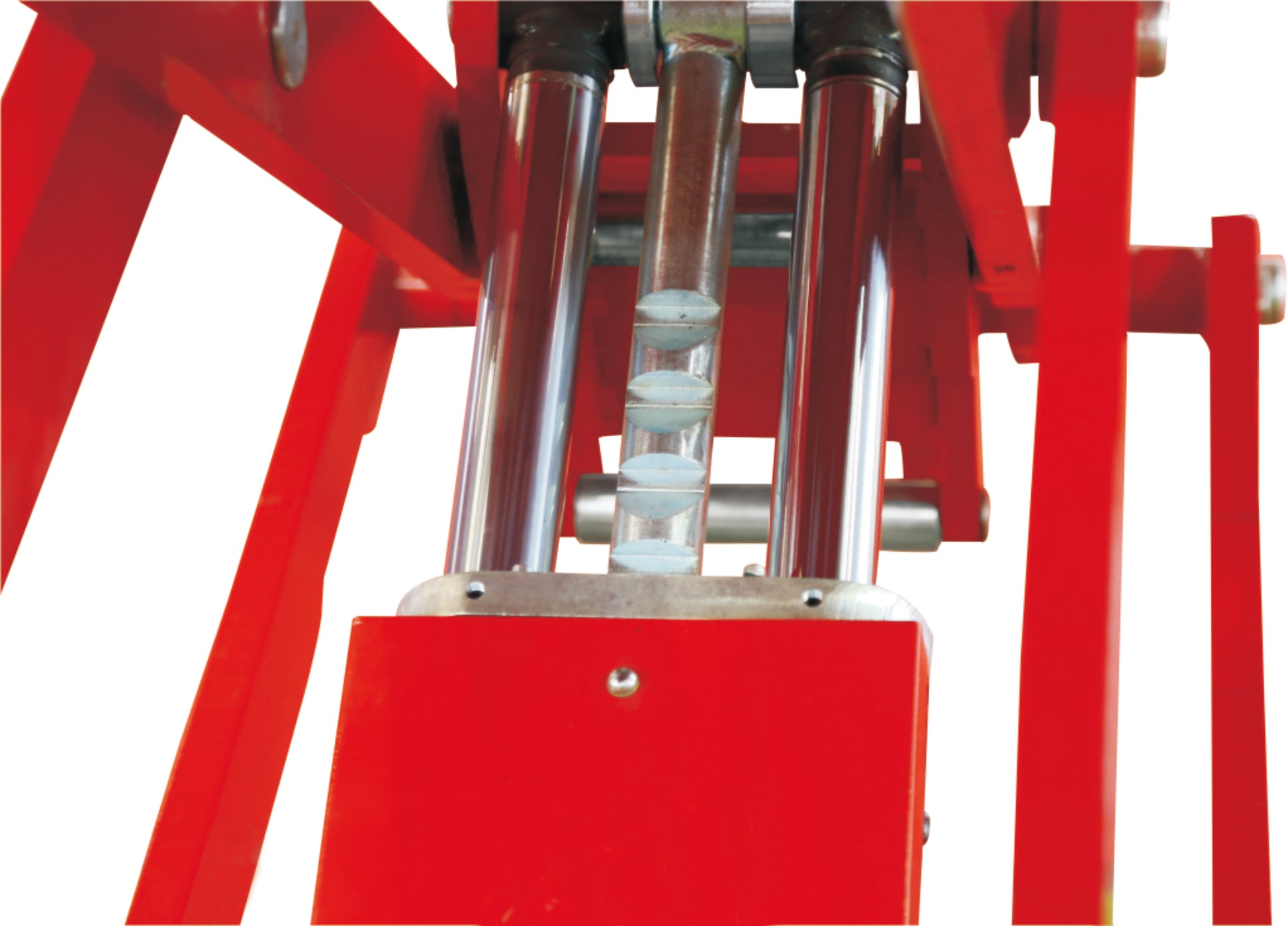

  • Electric released safety locking system

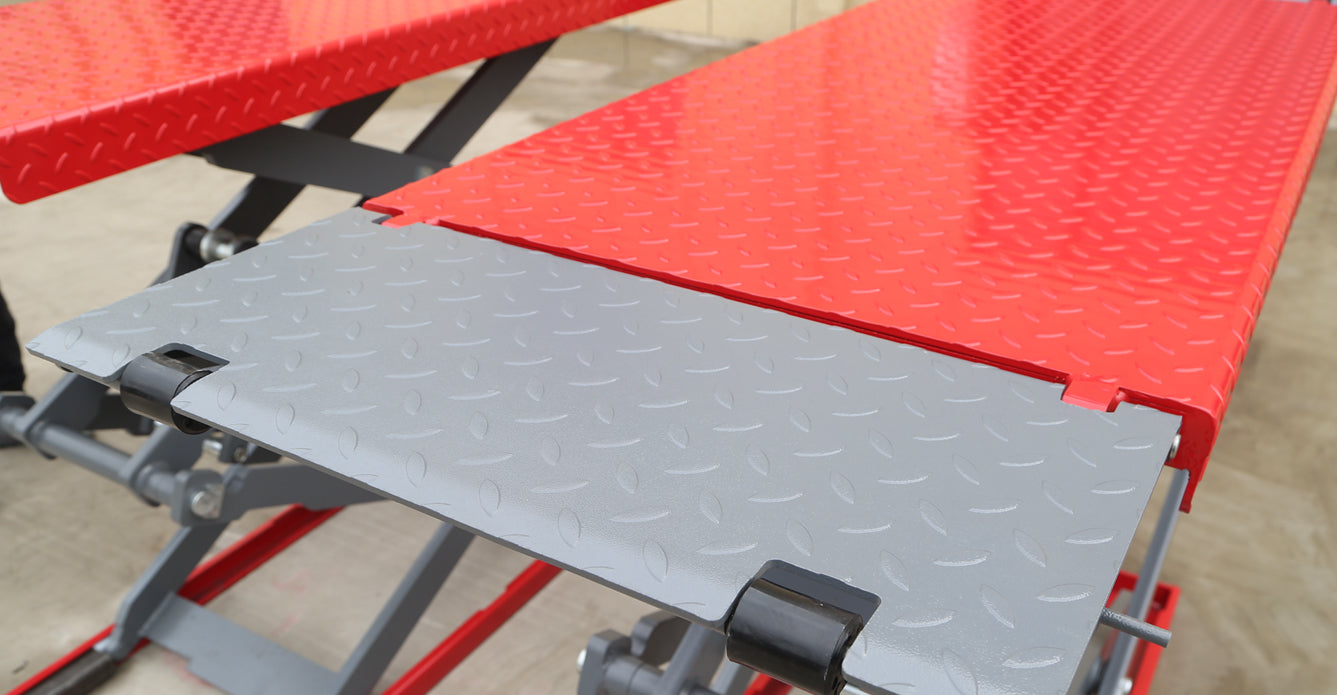

  • Drive-on ramps lock into position as platform extensions

  • Steady raising and lowering, no noise when lowered to the ground

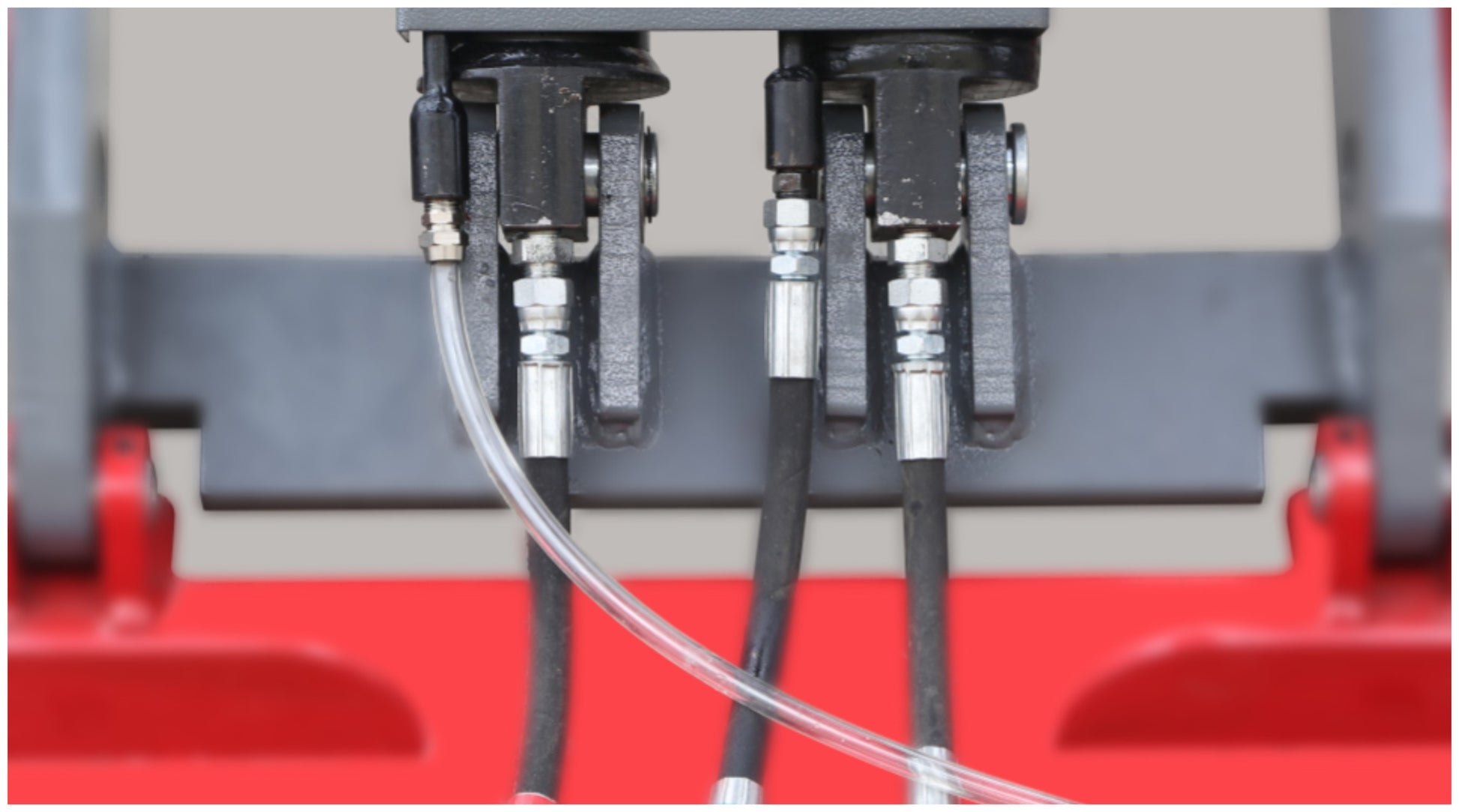

  • Durable cylinders with anti-surge valves

  • 24V safe control system

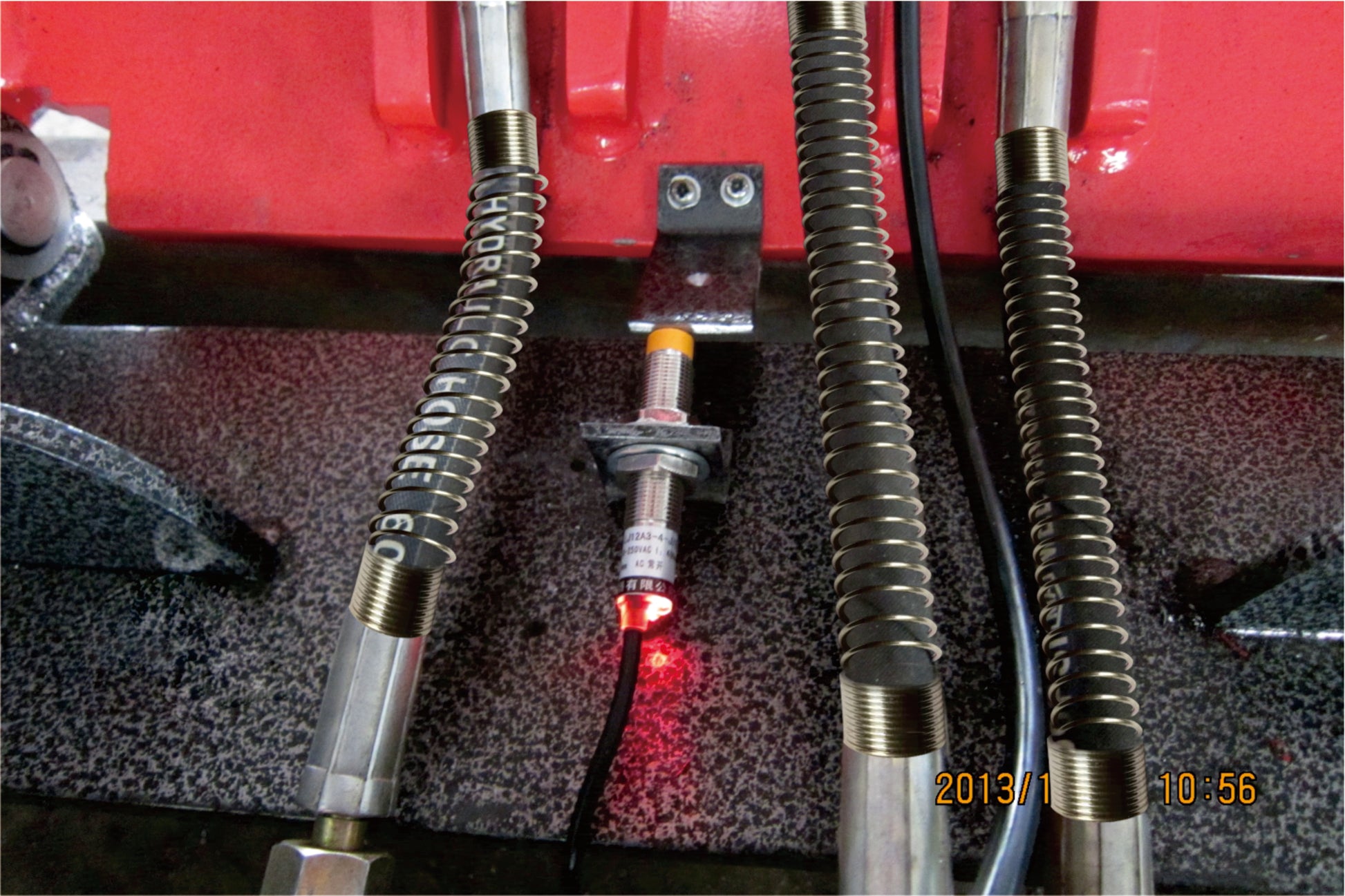

  • Height limit switch

  • Powder coated finish

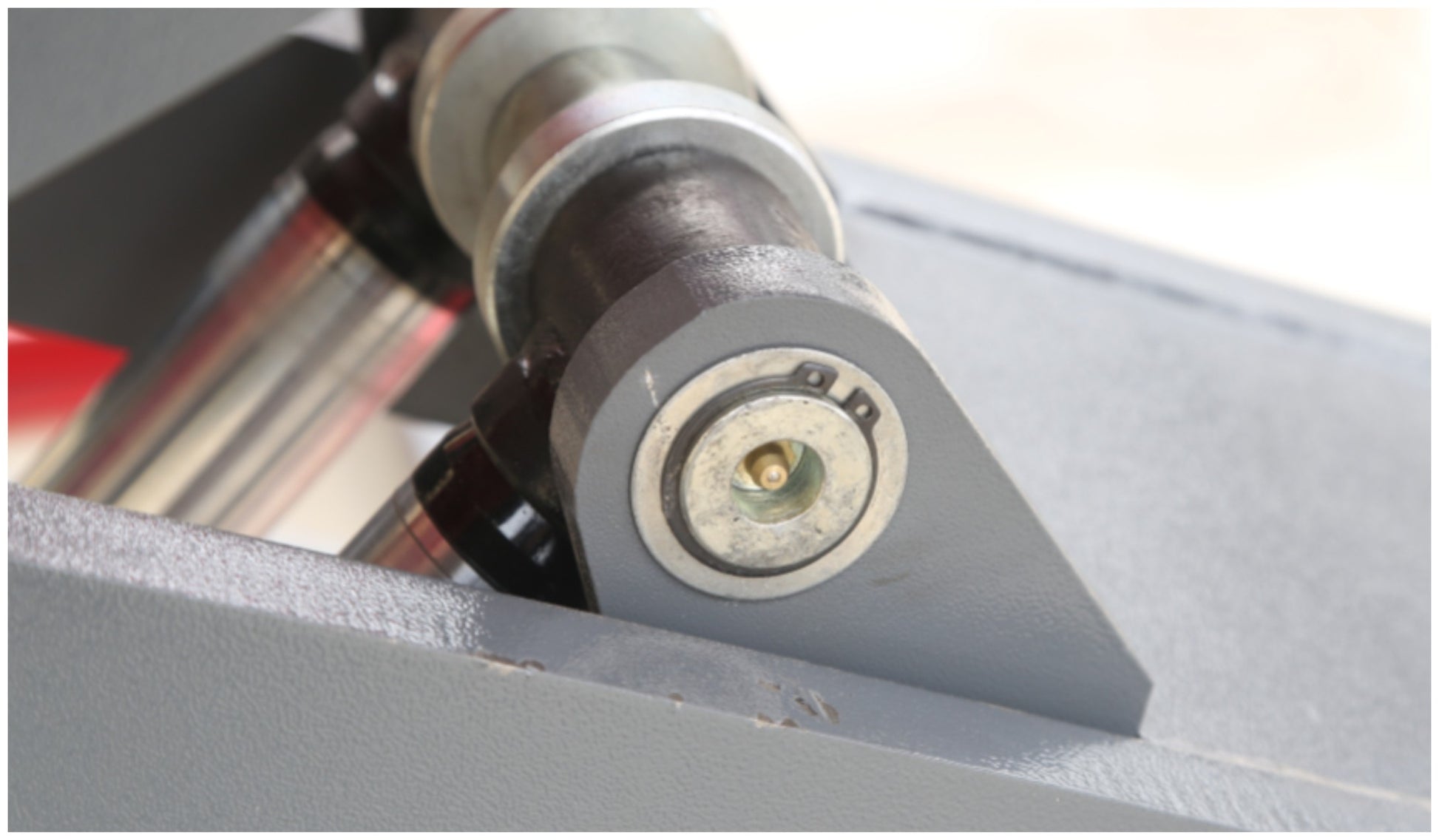

  • Self-lubricated bushing and bearing

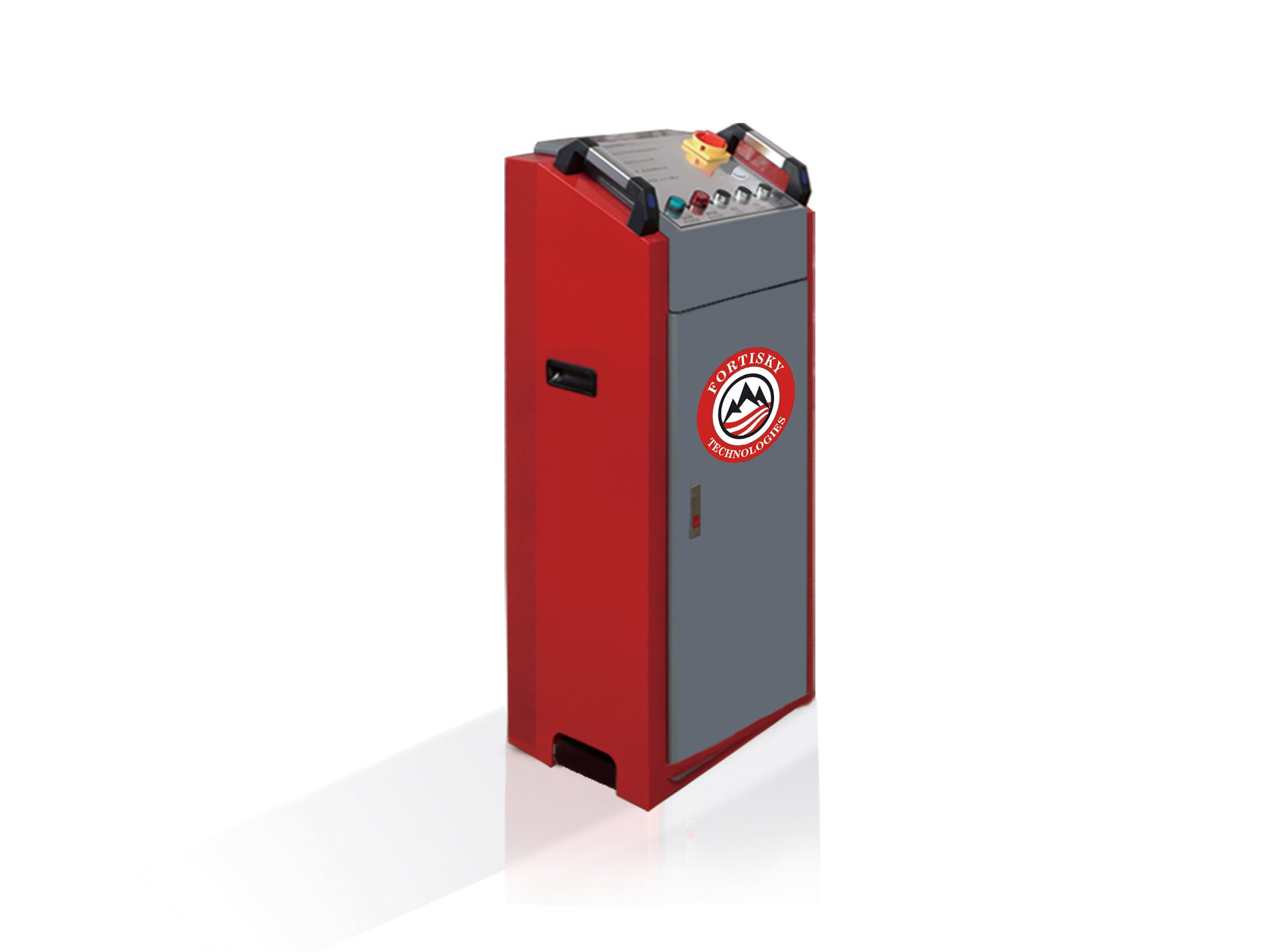

  • Front and rear door control box

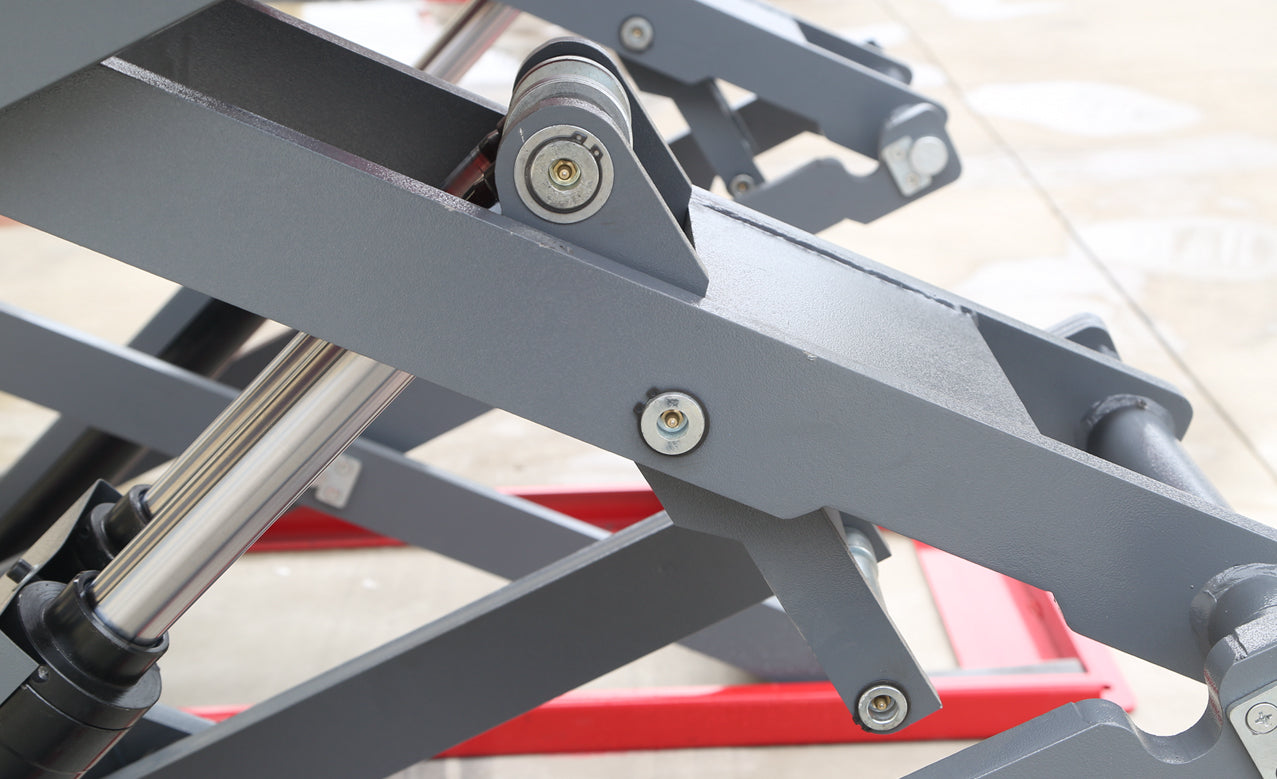

  • The arm is made of high strength Q355B manganese plate, while the upper cover uses a checkered plate design for both anti-slip performance and improved appearance



Model#

FSL-FR90

Capacity

9000LBS

Max. Lifting Height

72”/1830mm

Min. height

4”100mm

Platform length

59”/1500mm

Platform width

25.59”/650mm

Lifting time

≤50s

Down time

≤30s

Overall length

81”/2050mm

Overall width

80”2032 mm

Weight

1968lbs/893kg

Power supply

220V, 50Hz, 1PH

Power

2.2 KW

Noise

≤70dB

Rated oil pressure

24MPa

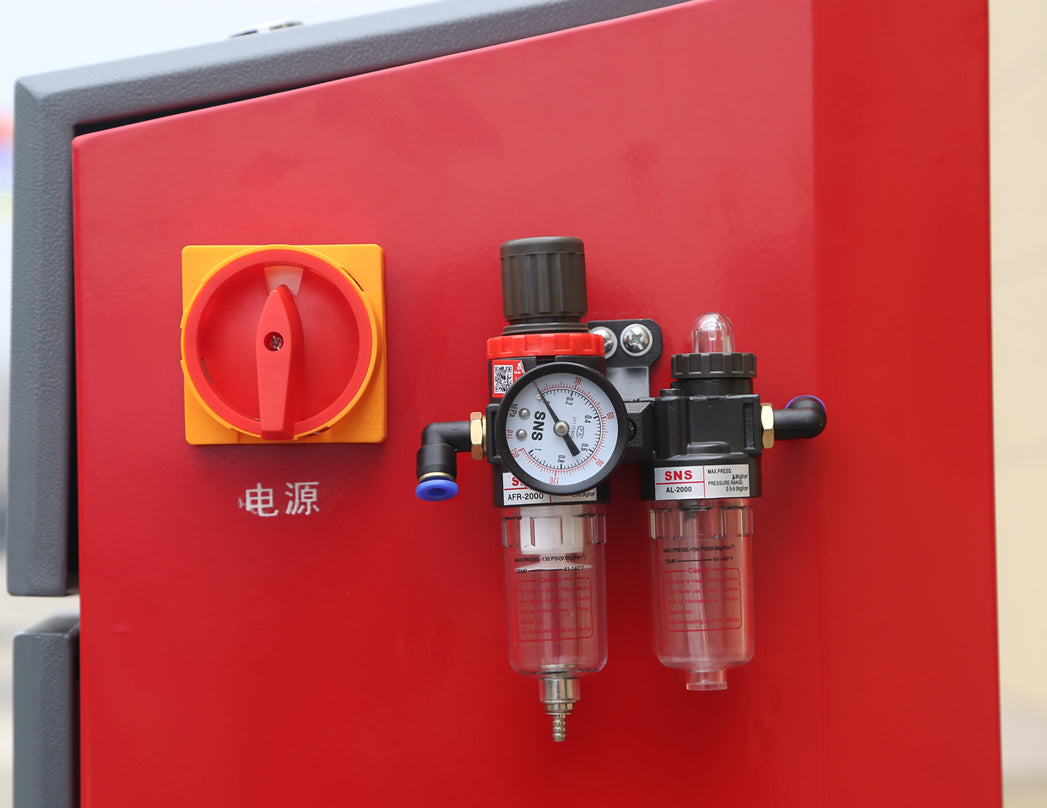

Air pressure

0.6-0.8MPa

Installation place

Indoors
